Where does the NodeId come from?

Every incoming message triggers the node. The NodeId source decides whether it also targets it.

That one sentence is the whole feature.

Node-RED users read an inject node as a trigger — "go now". Historically the runtime also treated it as a parameter — "go here". So an inject node wired in front of a carefully configured Read node would silently replace the NodeId you picked, and fail far downstream with a cryptic parse error.

Since 3.40 that is your choice to make, and the prefix of the NodeId field is where you make it.

Two questions, asked in order

The prefix has two stops:

Stop	Question	Answers
1 · source	Who decides the target?	this node · this node, templated · the message
2 · notation	How is the address written?	abc · ns= · na= · nsu= · / · /a:

The second question only exists because OPC UA has six ways to spell the same address — and it is only meaningful once this node owns the value. That is why the notation stop is dimmed for a template and disappears entirely for a message path.

The three sources

Source	The field holds	At runtime
this node	an address	The configured value is always used. Message properties are ignored.
this node, templated	an address with {{placeholders}}	The configured value is rendered with the incoming message (ns=1;s={{msg.payload.name}}).
the message	a pointer to an address	The field is a message path (payload.nodeId, topic, …). The value found there is used as-is — strings, arrays and nested objects alike. A missing path raises an error naming it.

The sentence test

Read the configuration aloud with the source as the subject:

• "This node reads /2:Boiler/2:Temperature." → nothing upstream can change it. Wire any inject node you like.
• "The message reads whatever is in payload.nodeId." → the field is a path, not a place.

If you can say the sentence, the node is configured. If you cannot, the source is not set yet.

Everything else follows

You should not have to memorise how the control behaves — it is all derivable:

Behaviour	Follows from
Browse and verify exist only under this node	The tools act on an address this node owns. Under a template there is nothing to browse to until a message arrives; under the message the field is a pointer, not a place.
Arrays, objects and subtrees pass through untouched in the message mode	The message decides — the node does not get a vote, so it does not inspect.
Picking a node from the browser sets the source to this node	You just told the node the answer.
Choosing a notation also sets this node	Choosing how your value is written implies the value is yours.
An upstream inject node is harmless under this node	It triggers; it does not target.
Amber means unanswered, not broken	It is a question nobody has answered yet.

Not set — where your existing flows land

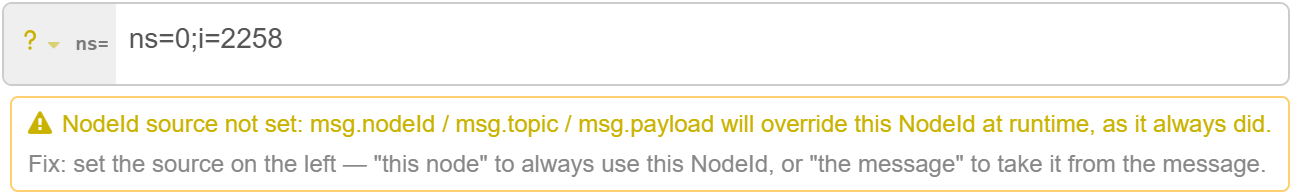

Flows saved before 3.40 have no source. They load in the not set state, shown as an amber ? on the first stop, and they behave exactly as they always did: the first defined message property wins over the configured value.

Not set is not a third design. It is the unanswered position of a switch, and it is offered in the menu only while the node is still in it — once you choose a source, the node cannot fall back into the ambiguous mode.

Two things are new even in this state:

• a scalar msg.payload / msg.topic that is not a NodeId (typically an inject-node timestamp) raises one targeted error naming what was received and which configured value was ignored, instead of failing downstream;
• when a valid message NodeId replaces a configured one, the node warns once in the debug side-bar and its status turns yellow with · nodeId from msg.topic for that message.

Migrating a flow

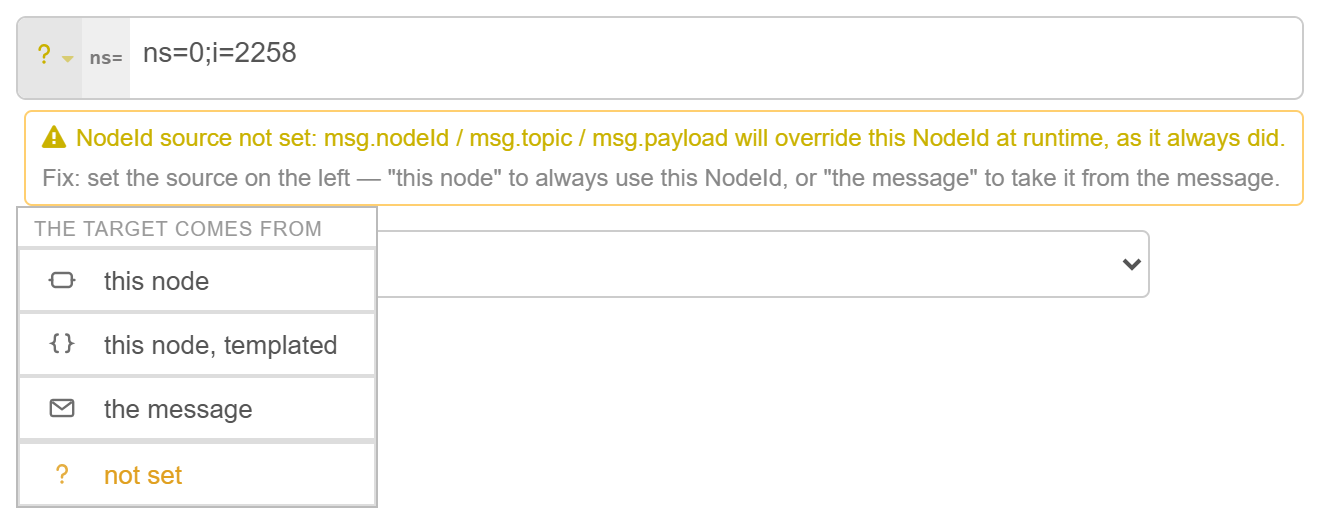

Open the node, click the first stop, and pick a source. On a node whose NodeId you configured yourself, that is this node — and the browse and verify buttons appear as soon as you do.

Legacy precedence, per node — what not set does

These orders exist for backward compatibility only. Under an explicit source none of them apply.

Node	Message properties tried, in order	When none is set
Read	msg.nodeId → msg.topic → msg.payload	configured NodeId, else i=2258 (CurrentTime)
Write	msg.nodeId → msg.topic	configured NodeId
Browse	msg.payload.nodeId → msg.nodeId → msg.topic	configured NodeId
History Read	msg.nodeId → msg.topic → msg.payload	configured NodeId, else i=2258
Call	msg.objectId / msg.methodId	configured ObjectId / MethodId
Explore	msg.nodeId	configured NodeId
File Operation	msg.nodeId	configured NodeId
Monitor	msg.payload.nodeId when the payload is an object, or msg.payload when it is a string. Never msg.topic, never msg.nodeId.	configured NodeId
Monitor Event	msg.payload.nodeId	configured NodeId, else the Server object

Monitor is the one worth reading twice: a numeric payload (an inject timestamp) is not a candidate at all, so it falls back to the configured NodeId rather than erroring.

msg. mode

The field holds a path. Browse and verify are gone — there is nothing to browse to and nothing to verify in a pointer — and the field offers the paths this node honours, followed by other common message properties. It stays free text: a flow can carry the address anywhere it likes.

Arrays and nested objects are passed through untouched, so a path pointing at a list of NodeIds drives a multi-node Read or an array Monitor exactly as a payload would.

Where the source lives

Each field stores its own source next to its value:

Node	Property
Read, Write, Browse, Explore, File Operation, Monitor, Monitor Event, History Read	nodeIdSource
Call	objectIdSource and methodIdSource — the two fields are independent

ExtensionObject has no source: its browser picks a data type, not a target node, so there is nothing for a source to choose between.

Backward compatibility

• A flow saved before 3.40 has no source property, loads as not set, and behaves exactly as before. Opening and saving the node does not change that — migration is a deliberate act.
• New nodes start on this node. A node you drag onto the canvas today has no legacy to preserve, so it is explicit from birth.

See also

• The node browser — the two stops, the glyphs, and the address-space tree
• Different ways to access a node — the six notations
